XTOOL IP919PRO Full-System Diagnostic Tablet with ECU Coding, DoIP/CAN FD & FCA AutoAuth

Includes 3 years of free software updates and a 3-year warranty.

Contact us to order or confirm availability

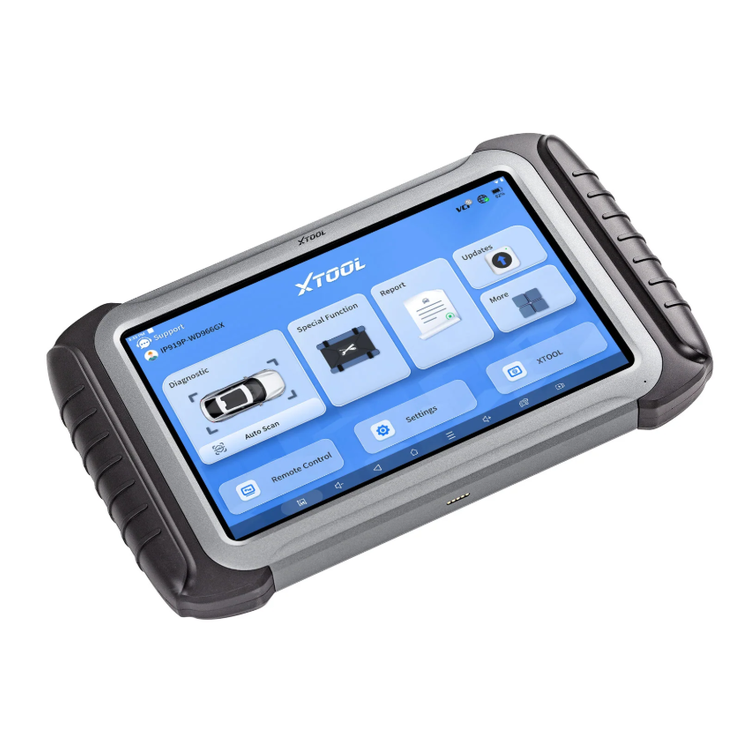

XTOOL IP919PRO

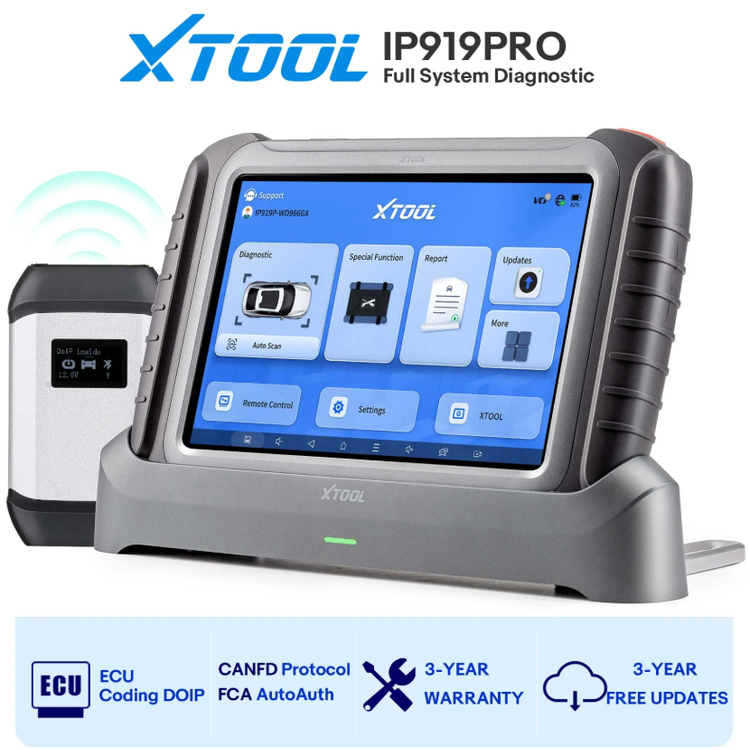

A high-end full-system diagnostic tablet with ECU coding, topology mapping, CAN FD and DoIP support and FCA AutoAuth, built on a fast octa-core platform with a 10.1-inch high-resolution screen.

Diagnostics

• Full-system diagnostics: read/clear codes, live data, freeze frame and ECU info.
• Bi-directional active tests (ABS pump, cooling fan, EVAP, windows, sunroof and more).
• Smart topology map of all vehicle modules.
• 8-in-1 live data graphing with recording, playback and CSV export.
• CAN FD, DoIP and FCA AutoAuth for Chrysler, Dodge and Jeep.

Coding & Programming

• ECU coding and configuration, including hidden-feature activation.
• BMW and VAG guided functions and online programming.
• Key programming with compatible XTOOL adapters (sold separately).

Service Functions

42+ functions including oil reset, EPB, DPF, SAS, TPMS reset, ADAS calibration and SRS. Availability varies by vehicle.

Tablet Specifications

• 10.1-inch touchscreen, 1920 × 1200.
• Android 10; octa-core processor (2.2 GHz + 1.8 GHz).
• 8 GB RAM and 128 GB storage.
• 6,400 mAh battery.
• USB or dual-band Wi-Fi connection.
• Interface in 14+ languages, including English and Spanish.

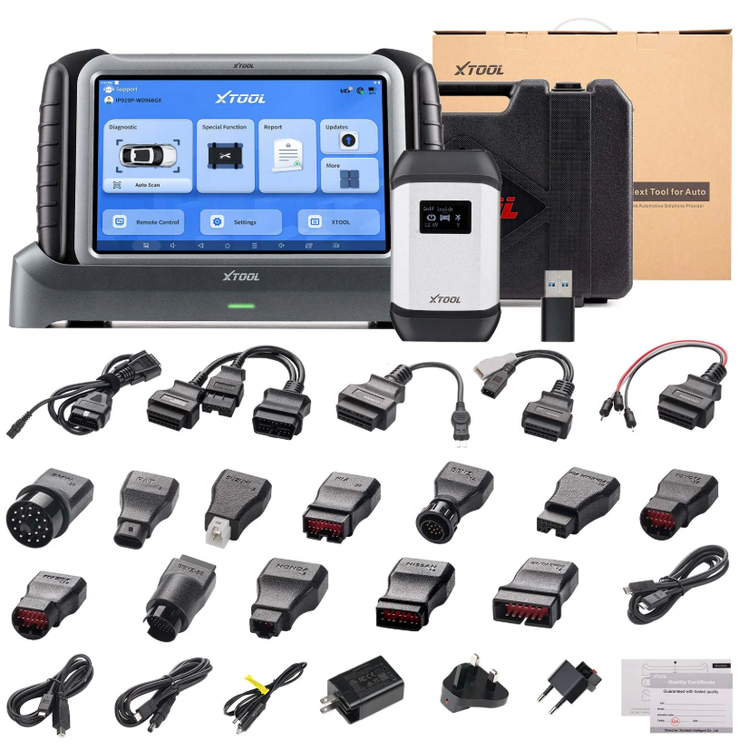

What's in the Box

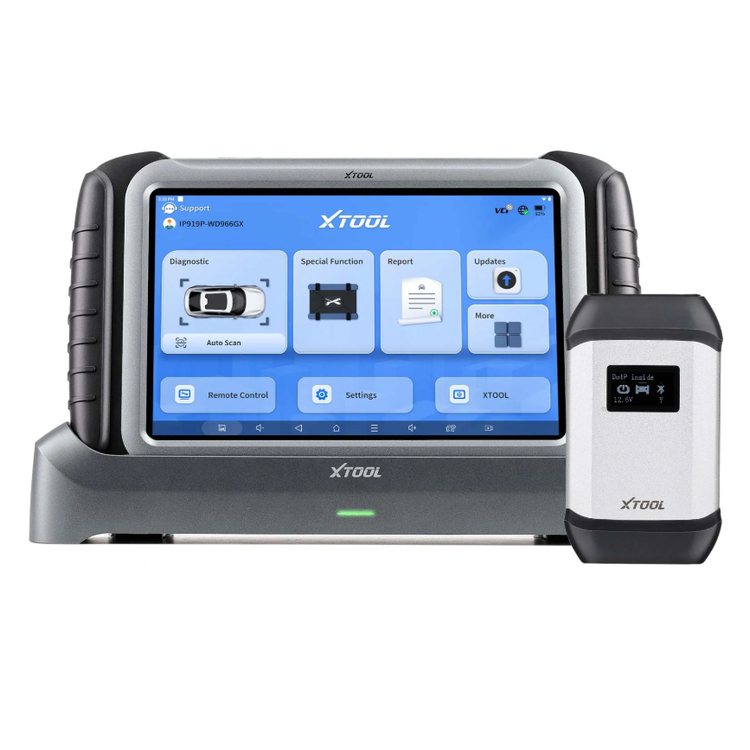

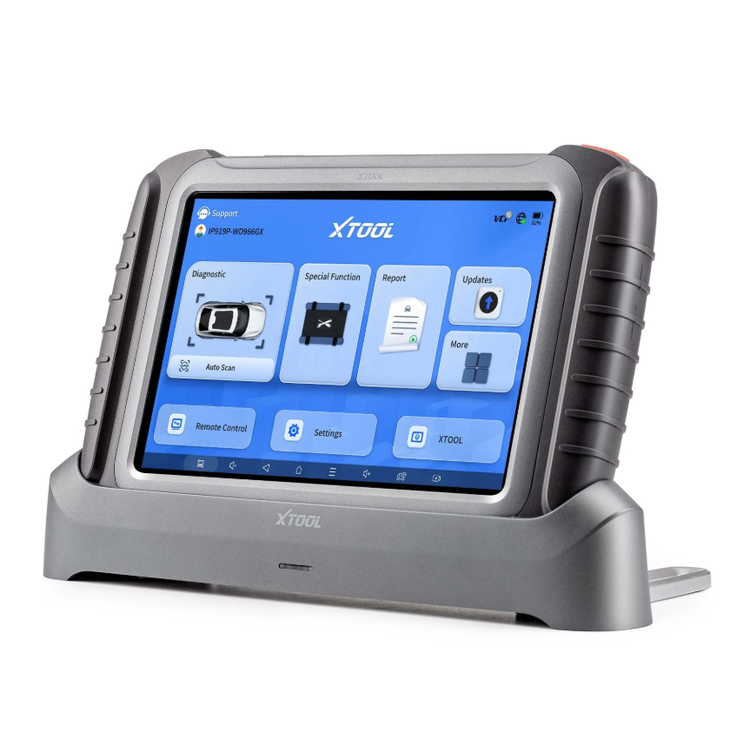

• IP919PRO tablet, VCI box, wireless charging dock and carrying case
• DB15 main cable; USB Type-C to Type-A, Type-B and Type-C cables
• US PD charger with EU and UK adapters; cigarette lighter cable
• Test connectors: OBD2-16, Honda-3, BMW-20, Benz-14, Benz-38, Toyota-17, Mazda-17R, Kia-20, Hyundai/Kia-10, Nissan-14, GM/Daewoo-12, Universal-3, Suzuki-3, Fiat-3, Citroën-2, Audi-4, Mitsubishi-12+16
• Quick start guide and packing list

Software and Compatibility

Includes 3 years of free updates. Key programming adapters (KC501, KC100, KS01, M821, M822, SK1) and videoscope modules are sold separately. Contact us with vehicle details to check coverage before ordering.
