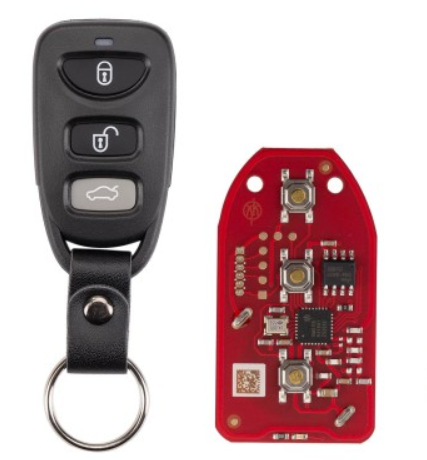

Xhorse XKHY21EN 2nd Gen Universal Remote Key – Hyundai Style, 4 Button

Xhorse XKHY21EN 2nd Gen Universal Remote Key – Hyundai Style, 4 Button

The Xhorse XKHY21EN is a second-generation XK Series universal remote key designed for professional automotive locksmith applications. Featuring a Hyundai-style 4-button design and the upgraded XM5118 transceiver, it provides a versatile solution for generating compatible remote configurations using Xhorse VVDI tools.

The second-generation design supports both wired and wireless remote generation while offering improved power efficiency and enhanced anti-static protection.

Key Features

• 2nd generation XK Series universal remote key
• Hyundai-style 4-button design
• Lock, Unlock, Trunk and Panic functions
• Upgraded XM5118 transceiver
• Supports wired and wireless remote generation
• Lower power consumption compared with previous-generation XK remotes
• Enhanced anti-static protection
• Replaces previous XKHY01EN generation
• Compatible with supported Xhorse VVDI key generation tools
• CR2032 battery required
• Battery not included
• Key blade not included
• Transponder chip not included

Product Information

• Brand: Xhorse
• Manufacturer Part Number: XKHY21EN
• Previous Model: XKHY01EN
• Series: XK Series Wired Remote V2
• Product Type: Universal Remote Key
• Style: Hyundai
• Buttons: 4
• Button Functions: Lock, Unlock, Trunk, Panic
• Transceiver: XM5118
• Frequency: Configurable based on generated remote application
• Battery: CR2032
• Battery Included: No
• Blade Included: No
• Transponder Chip Included: No
• Remote Generation: Wired / Wireless

Programming

Designed for remote generation with compatible Xhorse VVDI devices, including VVDI Key Tool, VVDI Mini Key Tool, VVDI Key Tool Max, VVDI Key Tool Plus and other supported Xhorse key generation tools.

The XKHY21EN supports both wired and wireless remote generation. A compatible transponder chip and key blade must be selected separately when required for the intended vehicle application.

Important: This is a universal remote and is not a direct replacement key for one specific Hyundai vehicle. Vehicle compatibility, frequency, transponder requirements and available functions depend on the remote configuration generated and the specific year, make and model. Always verify compatibility before ordering, generating or programming.
