Xhorse VVDI Key Tool Max Pro – Multi-Language Remote Programmer

Contact us to order or confirm availability

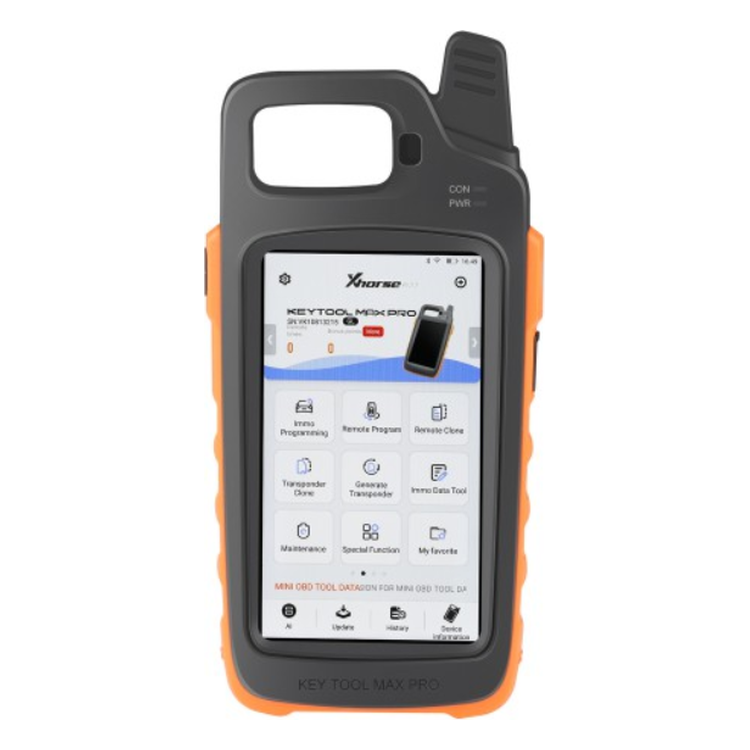

Xhorse VVDI Key Tool Max Pro

A professional all-in-one smart device for automotive locksmiths, combining the Key Tool Max with a built-in OBD module. Connects over Bluetooth and Wi-Fi and controls Xhorse key cutting machines directly.

Main Functions

• IMMO OBD match and immobilizer programming.
• Remote key and smart card key generation; remote cloning and renewal.
• Transponder generation, editing and cloning.
• Frequency detection and remote copying.
• Access card identification and copying; garage remote generation.
• Remote battery voltage and leakage current detection.
• Throttle programming, TPMS and maintenance light reset.

What the Pro Adds

• Built-in OBD module — no separate Mini OBD Tool needed for immo programming.
• Integrated CAN-FD module, covering models such as Cadillac CT4/CT5, Buick GL8 and Encore.
• Battery voltage and leakage current measurement.
• Toyota H all keys lost with the 8A AKL adapter (sold separately).

Key Cutting Machine Control

Works with Xhorse Dolphin XP-005, XP005L, Condor MINI Plus and MINI Plus II key cutting machines.

Specifications

• 1280 × 720 screen, over 400 nits brightness.
• 3,375 mAh battery — over 6 hours of use, 5 days standby.
• 8 MP camera.
• Wi-Fi 802.11a/b/g/n/ac and Bluetooth 4.2 BLE.
• App available in 17 languages including English and Spanish; database in English.

In the Box

• Key Tool Max Pro unit.
• OBD to DB15 cable with light.
• Remote programming cable.
• Leakage detection cable.
• USB cable and user manual.

Function availability varies by vehicle, model year and software version. Contact us with vehicle details to confirm coverage before ordering.
