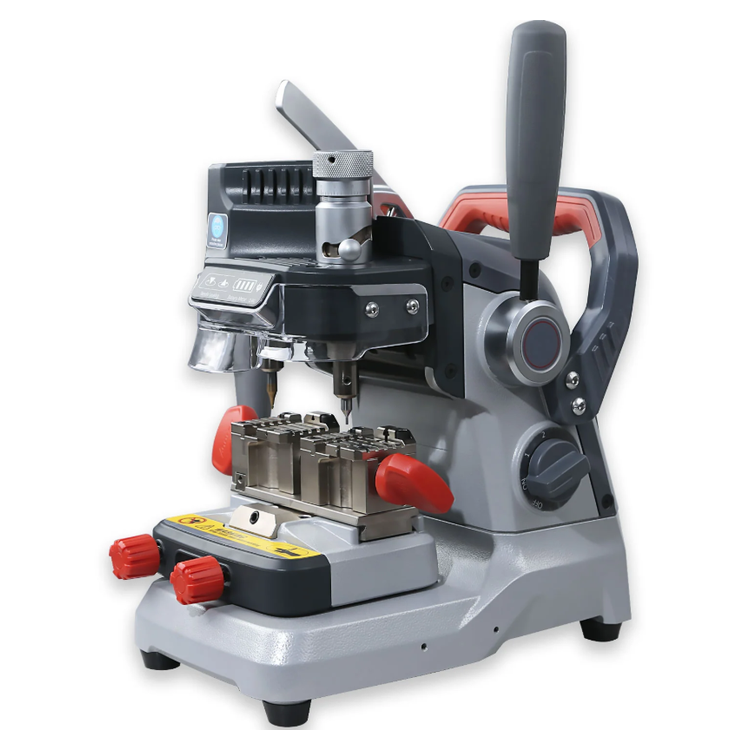

A portable manual key cutting machine for laser, dimple and flat keys. Precision-built aluminum body with a built-in lithium battery, so it cuts in the shop or on a service call without mains power.
Key Features
Cuts flat car keys, laser (sidewinder) keys, dimple keys and keyway keys.
Aluminum body machined on German DMG CNC equipment.
120 W brushless DC motor with two speed settings.
Micro-adjust probe with spring preload for fine adjustment.
Original key positioning to reduce errors caused by vibration.
Built-in 64.75 Wh lithium battery.
Supported Key Types
2-track external (sides A/B)
4-track external (sides A/D)
Channel track (sides A/D)
4-track internal (sides A/D)
Keyway keys (sides A/D) — requires a dedicated cutter
Standard multifunction clamp for single-sided, double-sided, keyway and Tibbe keys.
Specifications
Charging voltage 12–18 V; power consumption 120 W.
Spindle speed up to 13,000 RPM (7,000 / 10,000 RPM settings).
Spindle travel 25 mm; table travel 36 mm cross, 48 mm vertical.
Operating temperature 0–50°C.
Machine dimensions 282 × 246.5 × 355 mm; net weight 11.5 kg.
What's in the Box
Dolphin XP-007 main unit
Power cable
2.5 mm and 1.5 mm cutters
Double-sided probe
Hex wrench, key part and alignment stop
Cleaning brush
Warranty
1-year warranty with free technical and remote support. Contact us to confirm configuration and lead time before ordering.
