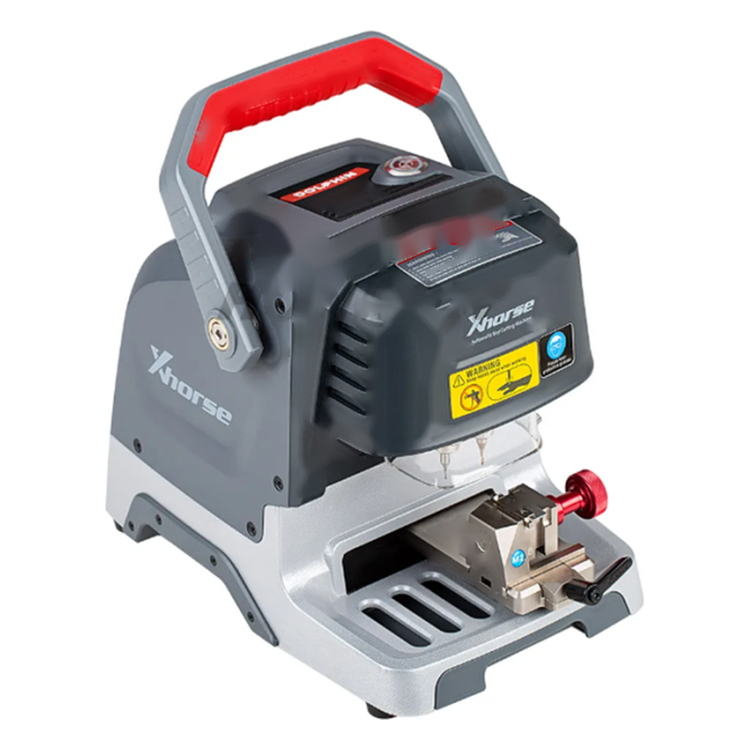

Xhorse Dolphin XP-005 Automatic Key Cutting Machine

Contact us to order or confirm availability

Xhorse Dolphin XP-005

A portable automatic key cutting machine built for automotive locksmiths who work roadside and on mobile service calls. Delivers the full capability of the Condor XC-Mini in a compact body with a built-in battery, so it cuts without mains power.

Key Capabilities

• Cuts sided, track, dimple and Tibbe keys, plus some household keys.
• Handles plastic and aluminium keys.
• Cut by bitting, key duplication, all keys lost, find bitting and key data customization.
• Reads bitting from a photo of the key blade using optical recognition.
• Self-calibration and universal key decoding for multiple key types.

Database and App

• Built-in database covering over 100 vehicle brands, 2,000 models and 20,000 key records.
• Lifetime free online database and firmware updates.
• Controlled over Bluetooth from the Xhorse app on a phone or tablet.
• Device interface in English; app available in 12 languages including Spanish.

Clamps and Cutters

• M1 clamp (included): standard single-sided and double-sided keys.
• M2 clamp (included): 2-track and 4-track external, dimple, channel track and 4-track internal keys.
• M3 clamp (optional): Ford FO21 and Citroën SX9 keys.
• M4 clamp (optional): household keys.
• Optional 1.0 mm tracer probe and 1.5 / 2.0 / 2.5 mm milling cutters.

Specifications

• Motor speed 10,000-13,000 RPM; rated torque 0.15 Nm.
• Cutting power 100 W; standby 15 W; input 12-24 V.
• Built-in 64.75 Wh lithium battery.
• Machine dimensions 315 × 218 × 270 mm; net weight 15 kg.
• Operating temperature −10°C to 50°C.
• LED status light and non-slip lifting handle.

In the Box

• Dolphin XP-005 main machine.
• 2.5 mm and 1.5 mm cutters, 2 probes.
• M1 clamp with link stopper; M2 clamp with shim.
• 2 mm and 4 mm hex wrenches, power adapter and brush.
• Quality certificate and user manual.

Warranty

1 year on the machine, 6 months on the battery. Pairs with the VVDI Key Tool Plus and Key Tool Max Pro for integrated cutting and programming workflows.
