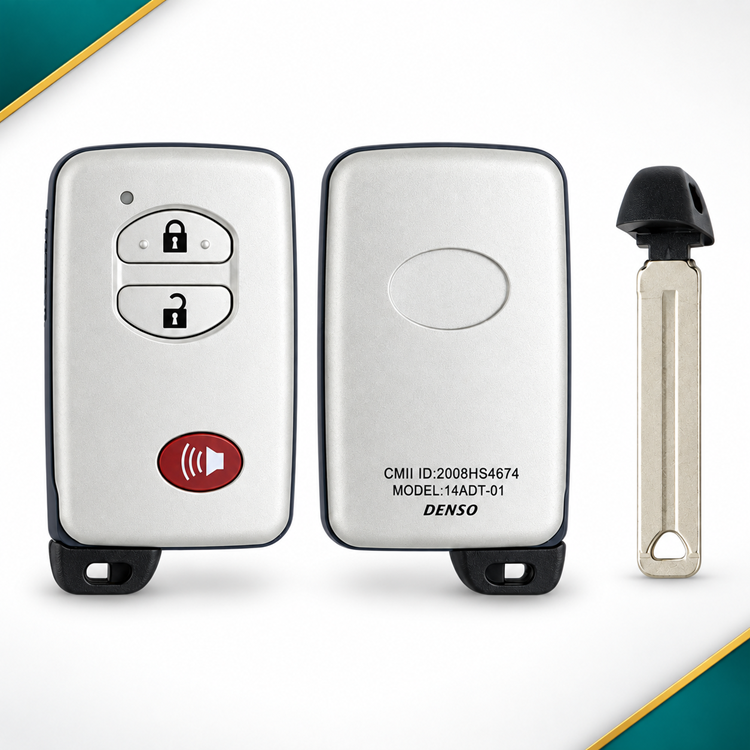

Toyota / Scion 3-Button Smart Key – HYQ14ACX – 314.3 MHz – ID74

Toyota / Scion 3-Button Smart Key – HYQ14ACX – 314.3 MHz – ID74

Aftermarket replacement 3-button smart key for select Toyota and Scion vehicles equipped with the HYQ14ACX proximity keyless-entry system and 5290 board family.

This smart key operates at 314.3 MHz FSK and uses ID74-WD04 transponder configuration. The remote provides Lock, Unlock, and Panic functions and is intended for compatible Keyless Go / push-to-start applications.

The primary U.S. replacement part-number family is based around 89904-47230, with additional compatible 3-button references including 89904-47370, 89904-47371, 89904-47374, 89904-0T050, and 89904-35010.

Always verify the original FCC ID, board number, frequency, button configuration, part number, and vehicle application before ordering or programming.

Key Features

• FCC ID: HYQ14ACX
• IC Cross-Reference: 1551A-14ACX
• Frequency: FSK 314.3 MHz
• Board: 5290
• GNE Board Family: 271451-5290
• Transponder Chip: ID74-WD04
• Chip Configuration: Aftermarket
• Button Count: 3
• Button Functions: Lock / Unlock / Panic
• Key Type: Smart Key
• Proximity / Keyless Go: Yes
• Push-to-Start Application: Yes
• Battery: CR2032
• Emergency Key Profile: TOY48 / LXP90
• Emergency Insert Cross-Reference: TOY51-P / 69515-52120
• Emergency Key Included: Yes
• Manufacturer Type: Aftermarket
• Condition: New

Product Information

• Compatible Make: Toyota / Scion
• Application Type: Smart Remote / Proximity / Immobilizer
• Vehicle System: Keyless Go / Push-to-Start
• Transponder: ID74-WD04
• Board: 5290
• Power Source: Battery Powered
• Battery Size: CR2032
• Emergency Key Profile: TOY48 / LXP90
• Emergency Key P/N: 69515-52120
• Emergency Key Included: Yes
• Programming: Dealer / Locksmith Programming Required
• Remote Features: Keyless Entry, Proximity Entry, Power Lock, Panic Mode

Primary OEM Cross-Reference:

89904-47230

Additional direct 3-button cross-references:

• 89904-47370
• 89904-47371
• 89904-47374
• 89904-0T050
• 89904-35010

For the emergency insert, the 69515-52120 family cross-references to TOY51-P and LXP90, with the mechanical profile also identified as TOY48.

Vehicle Compatibility

Toyota

• 4Runner: 2010–2019
• Prius: 2010–2012
• Prius C: 2012–2014
• Prius V: 2012–2016
• Venza: 2009–2016

Scion

• tC: 2011–2016

For Toyota Venza, specify:

3-button configuration / vehicles without Power Back Door

The 89904-47230 / HYQ14ACX / 5290 three-button family is documented for 4Runner, Venza, Prius-family applications and Scion tC. For Venza 2009–2016 the correct application is without power back door, an important distinction because power-back-door configurations require an additional button.

The 89904-47230 part number is also associated with Prius 2010–2012 and Prius V applications.

Important Compatibility Note

HYQ14ACX / 5290 exists in multiple Toyota and Lexus button configurations.

Do not determine compatibility from FCC ID or board number alone.

This Palmetto product is the 3-button Lock / Unlock / Panic configuration. The original remote should match:

• FCC ID HYQ14ACX
• 5290 board family
• 3-button layout
• compatible 3-button OEM P/N family
• appropriate vehicle application

This is particularly important because Lexus remotes using the same FCC ID and 5290 electronics can have Trunk, Hatch, or Glass/Hatch buttons and are not direct physical replacements for this SKU.

Programming & Compatibility

This smart key requires professional programming to the vehicle's immobilizer and proximity system before use.

The smart-key credential and remote functions must be registered using compatible Toyota / Scion locksmith or dealer programming equipment.

Do not expect a standard customer onboard programming procedure for this application. The emergency insert key must also be cut to match the vehicle before mechanical use. Professional programming is specified for the 89904-47230 family.

Because the HYQ14ACX family includes several button and vehicle configurations, FCC ID alone should never be used to determine compatibility.
