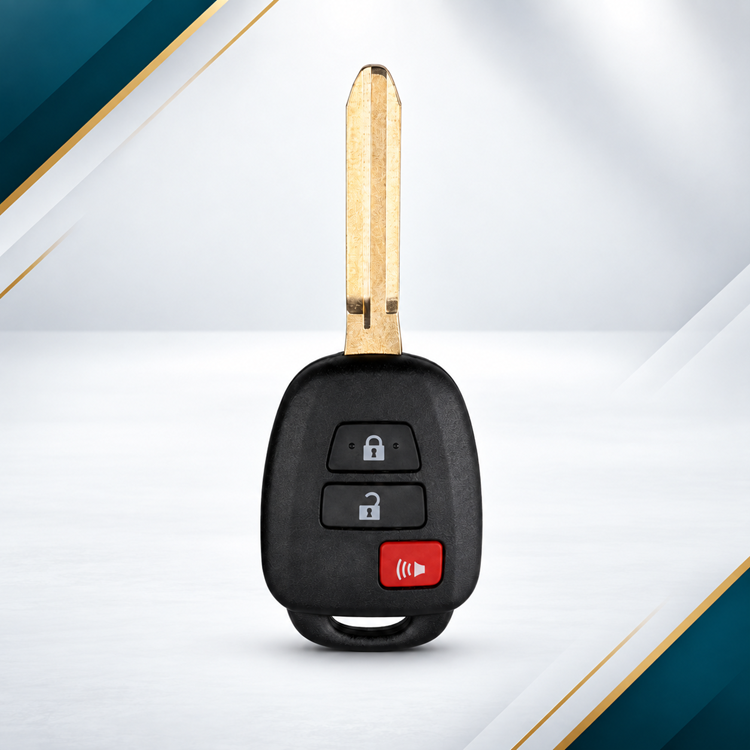

Toyota Prius C 3-Button Remote Head Key – HYQ12BDM – 314.4 MHz – G Chip

Toyota Prius C 3-Button Remote Head Key – HYQ12BDM – 314.4 MHz – G Chip

Aftermarket replacement remote head key for select Toyota Prius C applications equipped with the HYQ12BDM G-chip remote key system.

This 3-button remote head key operates at 314.4 MHz and features an integrated Toyota G / Texas ID 4D72 transponder system. The remote provides Lock, Unlock, and Panic functions with an integrated TR47 mechanical key blade. U.S. aftermarket references commonly list this frequency as 315 MHz.

Designed for professional automotive locksmith use. Programming is required before use. Always verify the FCC ID, transponder type, frequency, keyway, original part number, and vehicle application before cutting or programming.

Key Features

• FCC ID: HYQ12BDM
• Frequency: 314.4 MHz
• Transponder Chip: Toyota G / Texas ID 4D72
• Button Count: 3
• Button Functions: Lock / Unlock / Panic
• Key Type: Remote Head Key
• Keyway: TR47
• Chip Configuration: Integrated
• Ignition/Application: Non-Keyless Go
• Manufacturer Type: Aftermarket
• Condition: New
• Professional programming required

Product Information

• Compatible Make: Toyota
• Application Type: Remote / Immobilizer
• Keyway / Blade: TR47
• Power Source: Battery Powered
• Battery Size: CR2016
• Programming: Dealer / Locksmith Programming Required
• Remote Features: Keyless Entry, Power Lock, Panic Mode
• OEM Cross-Reference: 89070-52F60
• IC: 1551A-12BDM

Vehicle Compatibility

Toyota Prius C

• 2012–2017

Important: Vehicle compatibility may vary by production date, trim level, transponder generation, and original remote configuration. Verify FCC ID HYQ12BDM, G-chip type, button configuration, keyway, and original key specifications before ordering, cutting, or programming.

Programming & Compatibility

This remote head key requires immobilizer/transponder programming before it can start the vehicle.

Confirm that the original key uses FCC ID HYQ12BDM, the correct Toyota G-chip system, TR47 blade profile, and compatible 3-button configuration before programming.
