TOPDON Phoenix Max

TOPDON's flagship automotive diagnostic scanner — a 13.3" OE-level platform with docking station and cloud-based programming, built for shops handling complex jobs across passenger vehicles and commercial trucks.

Coverage and Capability

• Two years of automotive software updates plus one year of heavy-duty coverage.
• Full-system diagnostics across more than 200 vehicle brands — engine, transmission, airbag, ABS, ESP, TPMS, immobilizer, gateway, steering, radio and HVAC.
• 41 maintenance service functions covering mainstream vehicle platforms.
• Five core diagnostic functions: ECU information, read DTCs, clear DTCs, live data stream and active tests.
• AutoVIN for fast automatic vehicle identification.
• Guided Functions for VAG vehicles.
• FCA Secure Gateway support for authorised access to protected functions.
• Data stream recording and playback for reviewing and sharing sessions.

Cloud-Based Programming and Coding

Cloud programming for Mercedes-Benz, BMW, Volkswagen, Audi, Skoda, Seat, Porsche, Land Rover, Jaguar, Hyundai, Nissan, Subaru and Renault, plus online coding for Audi, BMW and Porsche.

Phoenix MDCI Pro VCI (Included)

The included Phoenix MDCI Pro communication interface supports DoIP, CAN-FD, D-PDU and RP1210 protocols, giving OE-level access on newer vehicles without outsourcing the job.

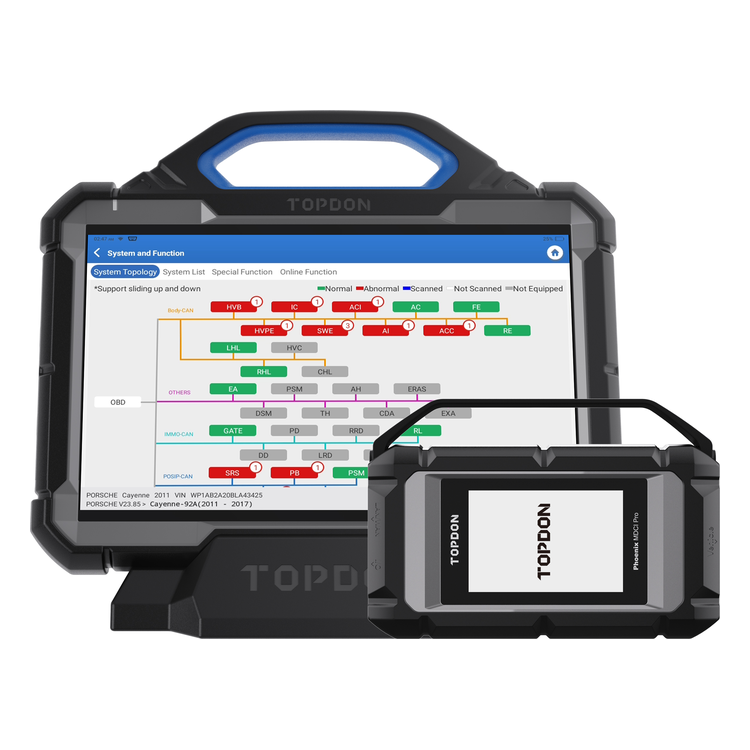

Topology Mapping

Visual layout of vehicle module communication and status, so technicians see the network at a glance instead of working module by module.

Hardware

• 13.3-inch display, 1920 × 1200 resolution.
• 8 GB RAM and 256 GB storage.
• 18,600 mAh battery — up to 8 hours of runtime.

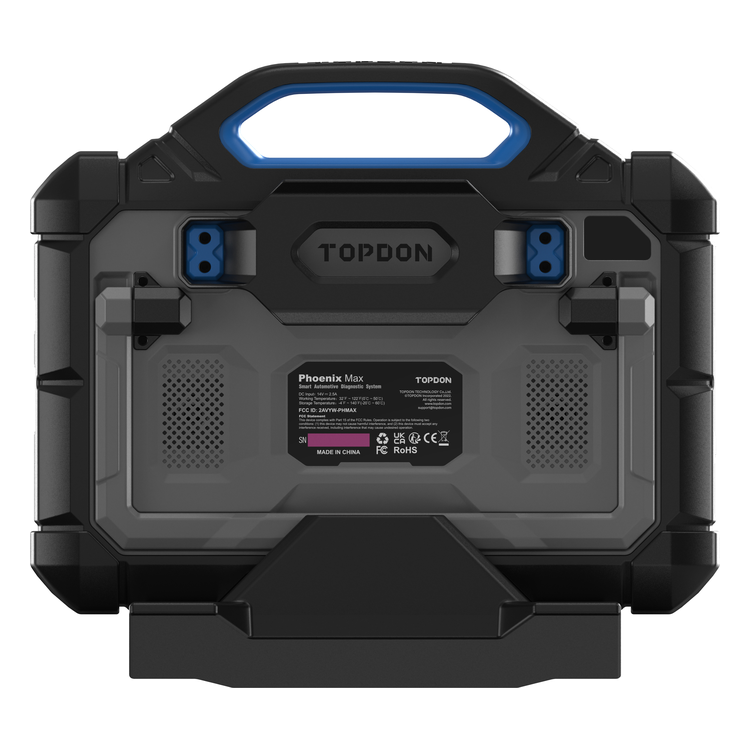

• Docking station included, keeps the unit charged between jobs.
• DC input 14 V / 2.5 A.
• Working temperature 32°F to 122°F (0°C to 50°C).
• Dimensions 14.33" × 8.66" × 3.23"; weight 6.44 lbs.

Expandable

Compatible with Phoenix ADAS, BTMobile Pros, T-Ninja Box and Phoenix Scope. Heavy-duty adapter cables are required for commercial truck work and are sold separately.

Warranty

1 year. Contact us with your vehicle coverage requirements before ordering.
