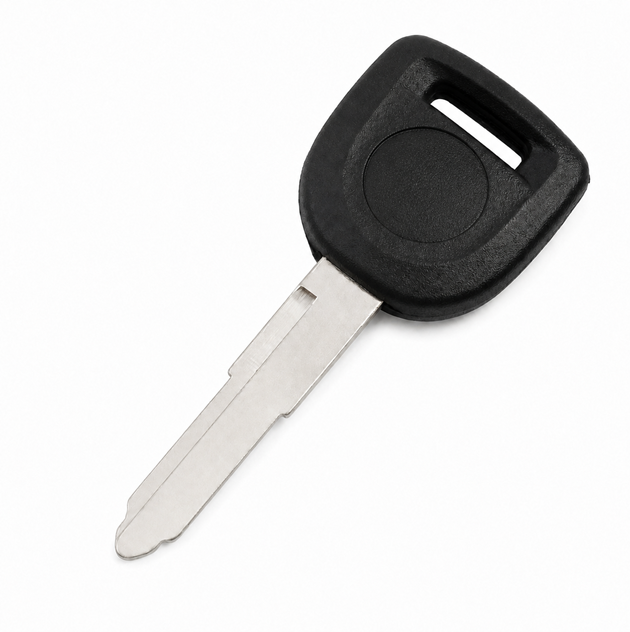

Mazda MZ24 / MZ34 Transponder Key – Texas 4D63 80-Bit Chip

Mazda MZ24 / MZ34 Transponder Key – Texas 4D63 80-Bit Chip

Aftermarket transponder key designed for compatible Mazda vehicles using the MZ24 / MZ34 key system and Texas 4D63 80-bit transponder platform.

This key features the MZ31 / X249 standard key profile with an integrated 4D63 80-bit transponder chip. It uses a 10-cut blade configuration and is intended for select Mazda keyed-ignition applications requiring both mechanical key cutting and vehicle-specific transponder programming.

Key Features

• Aftermarket automotive transponder key
• MZ24 / MZ34 key configuration
• MZ31 key profile
• ILCO X249 cross-reference
• JMA MAZ11D cross-reference
• Texas 4D63 80-bit transponder chip
• Standard edge-cut blade
• 10-cut configuration
• Code series 10100–12283
• Integrated transponder chip
• Key cutting required
• Vehicle-specific transponder programming required
• No remote functions
• No battery required

Product Information

• Product Type: Transponder Key
• Manufacturer Type: Aftermarket
• Key Reference: MZ24 / MZ34
• Keyway: MZ31
• Transponder Chip: Texas 4D63 80-Bit
• Chip Configuration: 4D63 / 80-Bit
• Cut Configuration: 10-Cut
• Code Series: 10100–12283
• ILCO EZ: MZ31
• ILCO: X249
• JMA: MAZ11D
• SILCA: MAZ25R
• STRATTEC Cross-Reference: 692070
• Application: Automotive
• Compatible Make: Mazda
• Key Cutting Required: Yes
• Transponder Programming Required: Yes
• Battery Required: No
• Remote Functions: No
• FCC ID: N/A

Vehicle Compatibility

Mazda

• Mazda2 — 2011–2014
• Mazda3 — 2004–2013
• Mazda5 — 2006–2014
• Mazda6 — 2003–2013
• CX-7 — 2007–2012
• CX-9 — 2007–2014
• MX-5 Miata — 2011–2014
• RX-8 — 2004–2011

Important: Vehicle compatibility may vary by production date, trim level, ignition configuration, and immobilizer system. Verify that the vehicle uses the MZ24 / MZ34 key system, MZ31 key profile, and Texas 4D63 80-bit transponder before cutting or programming.

Programming & Compatibility

This transponder key requires mechanical cutting and vehicle-specific immobilizer programming before use.

The MZ31 / X249 mechanical profile may appear across multiple Mazda applications, so a matching blade profile alone does not confirm electronic compatibility. The vehicle must specifically use the corresponding 4D63 transponder immobilizer system.
