LAUNCH Creader TPMS 5011 V2 TPMS Activation, Programming & Diagnostic Tool

One-click Wi-Fi software updates.

Contact us to order or confirm availability

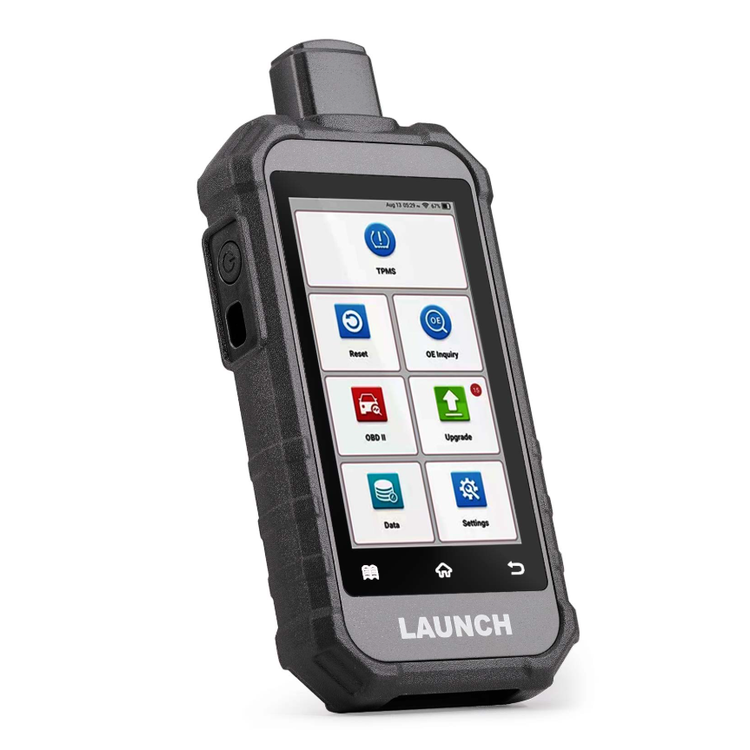

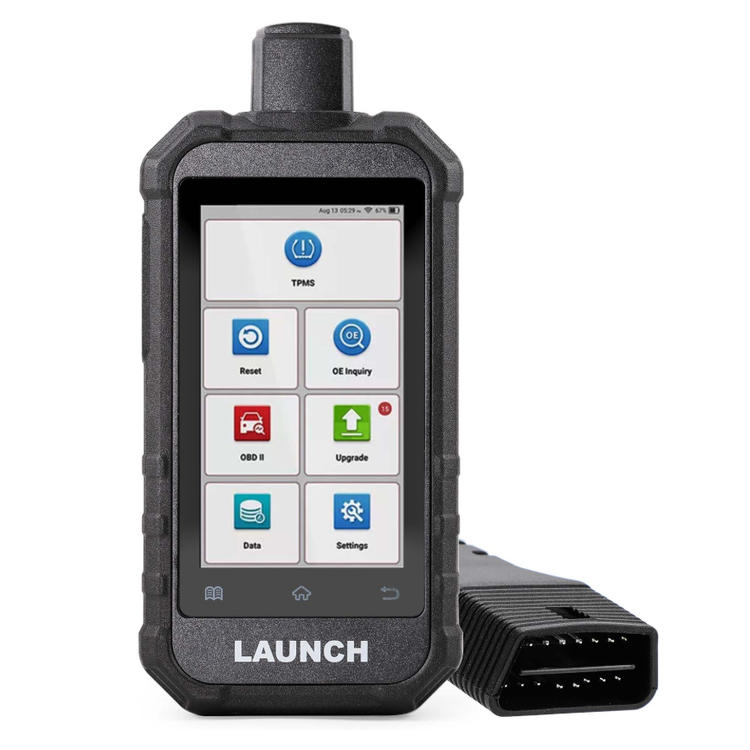

LAUNCH Creader TPMS 5011 V2

A compact Android TPMS tool for professional technicians and tire shops: sensor activation, reading, relearn and programming, plus generic OBD2 diagnostics and 12 service functions.

TPMS Functions

• Activates 315 MHz and 433 MHz sensors, plus 2.4 GHz sensors.
• Reads and writes sensor IDs; reads live tire pressure, temperature and battery status.
• OBD relearn of sensor IDs to the vehicle ECU; sensor OE number lookup.
• Programs LAUNCH sensors with auto-generated, manual or copied IDs — unlimited reprogramming, up to 8 sensors at once.
• TPMS diagnostics: read/clear codes, live data graphs, ECU info and TPMS warning light reset.

OBD2 Diagnostics

Read/clear codes, live data, freeze frame, I/M readiness, O2 sensor and on-board monitor tests, vehicle info and component tests.

Service Functions

Brake pad reset, oil reset, battery reset, SAS calibration, ABS bleeding, throttle reset, DPF regeneration, TPMS service, injector coding, sunroof reset, suspension sync, seat and window calibration. Availability varies by vehicle.

Specifications

• 5-inch 720p touchscreen; Android 8.1.
• 2 GB RAM and 32 GB storage; 6,000 mAh battery.
• Wi-Fi; OBD2 and USB Type-C ports.
• Powered by the vehicle (9–18 V) or USB (5 V).
• 211.5 × 99 × 34.5 mm; under 880 g.
• Interface in 11 languages, including English and Spanish.

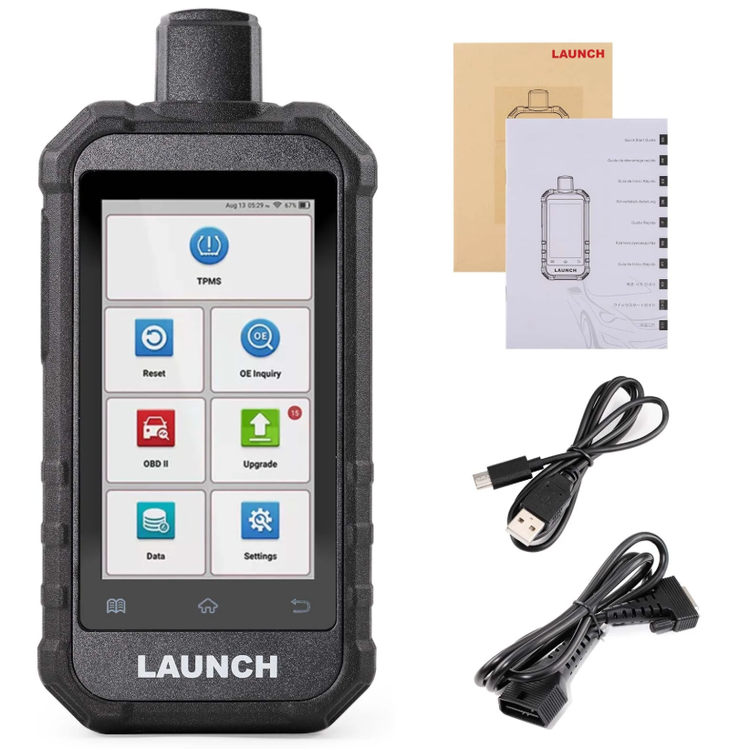

What's in the Box

• 1 × TPMS 5011 V2 main unit
• 1 × main cable
• 1 × charging cable
• Quick start guide

Software and Compatibility

Function availability varies by vehicle, model year and software version. Contact us with vehicle details to check coverage before ordering.
