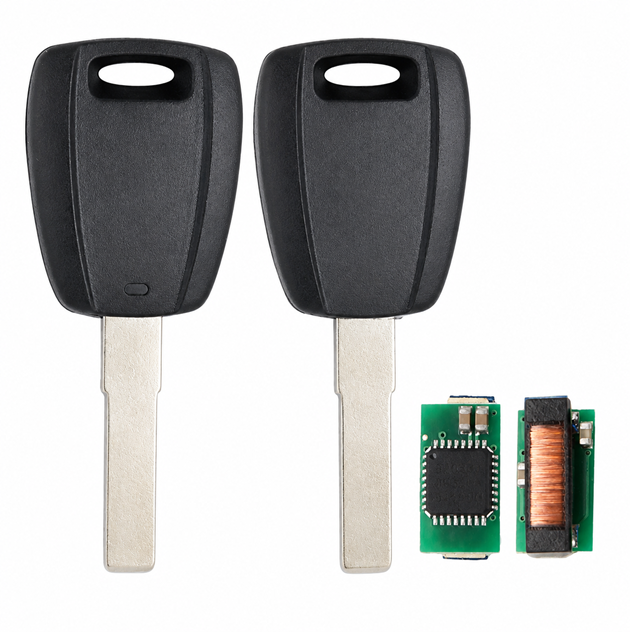

Jeep / Fiat SIP22 Transponder Key – Megamos ID48 AES / 48 MQB Chip

Jeep / Fiat SIP22 Transponder Key – Megamos ID48 AES / 48 MQB Chip

Aftermarket transponder key designed for compatible Jeep Renegade and Fiat 500X vehicles using the SIP22 high-security key profile and Megamos ID48 AES / 48 MQB transponder system.

This key features an SIP22 laser-cut blade with an integrated Megamos 48 AES transponder chip. It is intended for select Fiat/Jeep immobilizer applications and requires both mechanical key cutting and vehicle-specific transponder programming before use.

Key Features

• Aftermarket automotive transponder key
• SIP22 high-security keyway
• Laser-cut / sidewinder blade
• Megamos ID48 AES transponder chip
• 48 MQB / AES configuration
• 8-cut blade
• DE00001–DE11210 code series
• ILCO EZ reference Y148
• Nickel-plated blade
• Integrated transponder chip
• Key cutting required
• Vehicle-specific transponder programming required
• No remote functions
• No battery required

Product Information

• Product Type: Transponder Key
• Manufacturer Type: Aftermarket
• Keyway: SIP22
• Blade Type: High Security / Laser Cut
• Transponder Chip: Megamos ID48 AES
• Chip Configuration: 48 AES / 48 MQB
• Cut Configuration: 8-Cut
• Code Series: DE00001–DE11210
• ILCO EZ Reference: Y148
• Blade Material: Nickel Plated
• Application: Automotive
• Compatible Makes: Jeep, Fiat
• Key Cutting Required: Yes
• Transponder Programming Required: Yes
• Battery Required: No
• Remote Functions: No
• FCC ID: N/A



Vehicle Compatibility

Jeep

• Renegade — 2015–2018

Fiat

• 500X — 2016–2019

Important: Vehicle compatibility may vary by production date, ignition configuration, and immobilizer system. Verify that the vehicle uses the SIP22 key profile and Megamos ID48 AES / 48 MQB transponder system before cutting or programming.

Programming & Compatibility

This transponder key requires mechanical cutting and vehicle-specific immobilizer programming before use.

The SIP22 mechanical keyway is used on additional Fiat, Jeep, Ram, and other vehicle applications, but a matching SIP22 blade alone does not confirm electronic compatibility. This key must specifically match a vehicle using the Megamos 48 AES / MQB transponder system.
