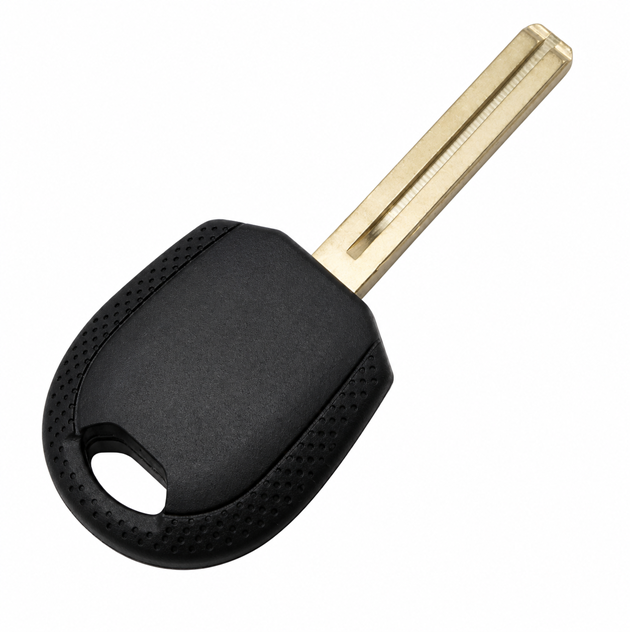

Hyundai / Kia HY20-PT Transponder Key – Philips ID46 – LXP90

Hyundai / Kia HY20-PT Transponder Key – Philips ID46 – LXP90

Aftermarket transponder key designed for compatible Hyundai and Kia vehicles using the HY20 / HY20-PT key system and Philips ID46 immobilizer platform.

This key uses the LXP90 / LXP90-P standard edge-cut profile with an integrated ID46 transponder chip. The HY20-PT family is commonly associated with a PCF7936-compatible ID46 transponder and is intended for select Hyundai and Kia keyed-ignition applications requiring both mechanical key cutting and vehicle-specific immobilizer programming.

Key Features

• Aftermarket automotive transponder key
• HY20 / HY20-PT key configuration
• LXP90 / LXP90-P keyway
• Philips ID46 transponder chip
• PCF7936-compatible transponder family
• Standard edge-cut blade
• 5-cut configuration
• Hyundai / Kia code series G0001–G2500
• Integrated transponder chip
• Key cutting required
• Vehicle-specific transponder programming required
• No remote functions
• No battery required

Product Information

• Product Type: Transponder Key
• Manufacturer Type: Aftermarket
• Key Reference: HY20 / HY20-PT
• Keyway: LXP90 / LXP90-P
• Blade Cross-Reference: TOY48 / TR48
• Transponder Chip: Philips ID46 / PCF7936-Compatible
• Chip Configuration: ID46
• Cut Configuration: 5-Cut
• Code Series: G0001–G2500
• ILCO EZ: LXP90
• ILCO: LXP90-P
• JMA: TP12HY-18.P
• JET: LXP90-PH
• KEYLINE: TR48BTK3
• SILCA: TOY48BT4
• Application: Automotive
• Compatible Makes: Hyundai, Kia
• Key Cutting Required: Yes
• Transponder Programming Required: Yes
• Battery Required: No
• Remote Functions: No
• FCC ID: N/A

Vehicle Compatibility

U.S. models:

Hyundai

• Azera — 2006–2011
• Genesis Sedan / 4-Door — 2009–2012

Kia

• Borrego — 2009–2011
• Sedona — 2009–2011

Programming & Compatibility

This transponder key requires mechanical cutting and vehicle-specific immobilizer programming before use.
