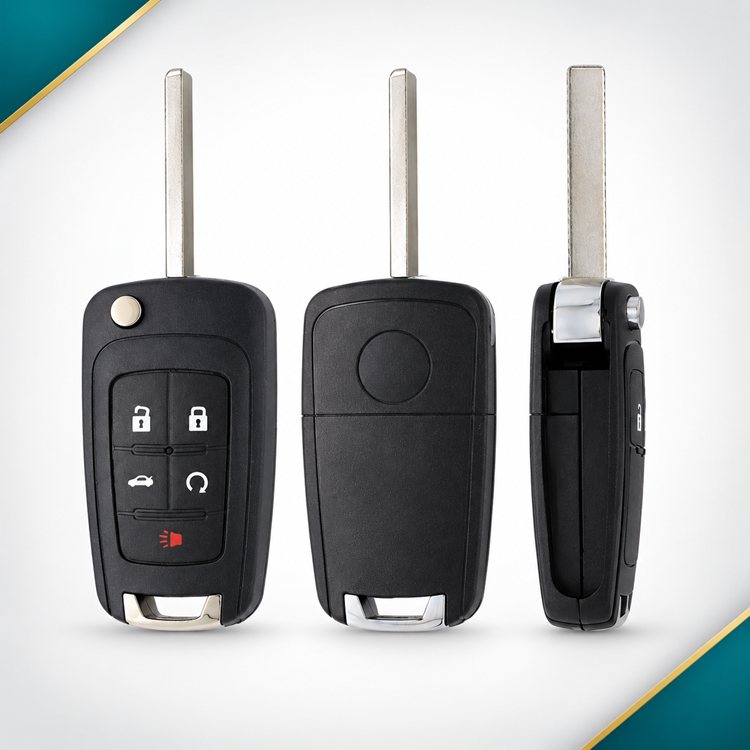

GM 5-Button Remote Flip Key – OHT01060512 – 315 MHz – ID46

GM 5-Button Remote Flip Key – OHT01060512 – 315 MHz – ID46

Aftermarket replacement remote flip key for select Buick, Chevrolet, and GMC vehicles equipped with the OHT01060512 remote and immobilizer system.

This 5-button remote flip key operates at 315 MHz and features an integrated Philips ID46 GM EXT transponder system. The remote provides Lock, Unlock, Trunk Release, Remote Start, and Panic functions while combining the vehicle's mechanical ignition key, immobilizer transponder, and remote keyless-entry functions into a single flip-key design.

The integrated blade uses the HU100 high-security profile. This key is intended for compatible non-proximity vehicle applications and should not be confused with other OHT01060512 keys using different button configurations or OEM part numbers.

This 5-button configuration is documented as FCC ID OHT01060512, IC 5461A-01060512, Philips ID46 GM EXT, 315 MHz, CR2032 battery and HU100 blade. Always verify the original FCC ID, frequency, button configuration, OEM part number, transponder type, blade profile, and vehicle application before ordering, cutting, or programming.

Key Features

• FCC ID: OHT01060512
• IC: 5461A-01060512
• Frequency: 315 MHz
• Transponder Chip: Philips ID46 GM EXT / 46E
• Chip IC: PCF7941E / NCF295xETT
• Transponder Technology: HITAG2
• Button Count: 5
• Button Layout: 4+1
• Button Functions: Lock / Unlock / Trunk Release / Remote Start / Panic
• Key Type: Remote Flip Key
• Keyless Go / Proximity: No
• Keyway / Blade: HU100
• Integrated Flip Blade: Yes
• Battery: CR2032
• Chip Configuration: Integrated
• Manufacturer Type: Aftermarket
• Condition: New

Product Information

• Compatible Makes: Buick / Chevrolet / GMC
• Application Type: Remote / Immobilizer
• Integrated Flip Blade: Yes
• Keyway / Blade Profile: HU100
• Transponder: Philips ID46 GM EXT / PCF7941E HITAG2
• Power Source: Battery Powered
• Battery Size: CR2032
• Programming: Onboard or Dealer / Locksmith Programming Depending on Vehicle
• Remote Features: Keyless Entry, Power Lock, Trunk Release, Remote Start, Panic Mode
• Primary OEM Reference: 13504199
• Additional Cross-References: 13574863 / 20979468 / 13504259 / 13504204 / 5924369 / 5912548 / 5912556 / 5913397
• Strattec Cross-Reference: 5912545
• Ilco Cross-Reference: AX00010590 / AX00014470

Vehicle Compatibility

Buick

• Allure: 2010–2012
• Encore: 2013–2020
• LaCrosse: 2010–2016
• Regal: 2011–2017
• Verano: 2012–2016

Chevrolet

• Camaro: 2010–2016
• Cruze: 2011–2015
• Cruze: 2016 — D1SC configuration only
• Equinox: 2010–2019
• Impala: 2014–2019
• Malibu: 2013–2016
• Sonic 4-Door: 2012–2017

GMC

• Terrain: 2010–2019

Important: FCC ID OHT01060512 exists in multiple button and OEM part-number configurations. Verify the original FCC ID, 315 MHz frequency, 5-button Remote Start configuration, HU100 blade, OEM part number, and vehicle application before ordering, cutting, or programming.

Programming & Compatibility

This remote flip key requires programming to the vehicle's immobilizer and remote keyless-entry system before use.

This key is intended for non-proximity applications.

Because OHT01060512 was also produced in other button configurations, FCC ID alone should not be used to establish compatibility. The original button layout and part-number family should also match.
