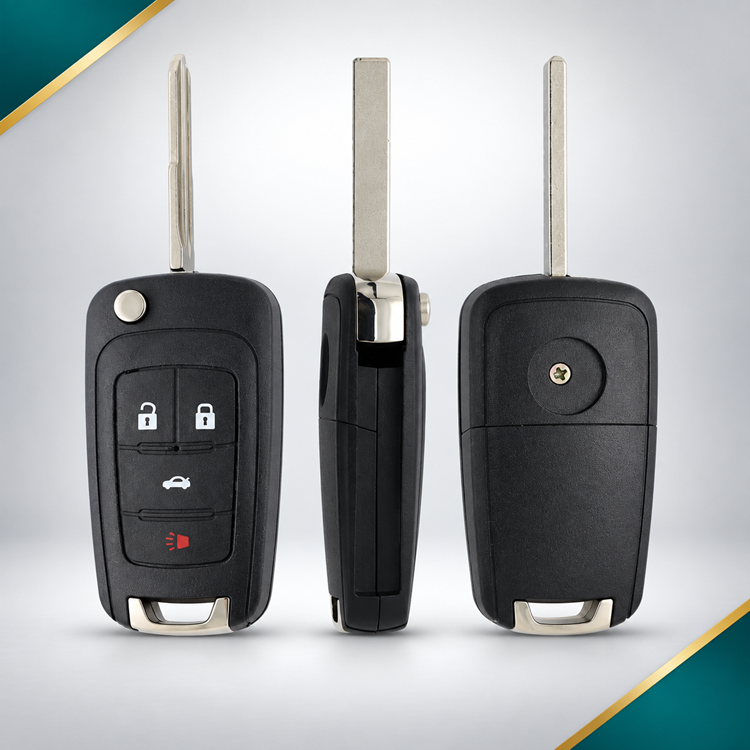

GM 4-Button Remote Flip Key – OHT01060512 – 315 MHz – ID46 GM EXT

GM 4-Button Remote Flip Key – OHT01060512 – 315 MHz – ID46 GM EXT

Aftermarket replacement remote flip key for select Buick, Chevrolet, and GMC vehicles equipped with the OHT01060512 remote and immobilizer system.

This 4-button remote flip key operates at 315 MHz and features an integrated Philips ID46 GM EXT / 46E transponder system. The remote provides Lock, Unlock, Trunk Release, and Panic functions while combining the vehicle's mechanical ignition key, immobilizer transponder, and remote keyless-entry functions into a single flip-key design.

The integrated blade uses the HU100 high-security profile. This is a non-proximity configuration and does not include a Remote Start button.

Always verify the original FCC ID, frequency, button configuration, transponder type, OEM part number, blade profile, and vehicle application before ordering, cutting, or programming.

Key Features

• FCC ID: OHT01060512
• IC: 5461A-01060512
• Frequency: 315 MHz
• Transponder Chip: Philips ID46 GM EXT / 46E
• Chip IC: PCF7941E / NCF295xETT
• Transponder Technology: HITAG2 Extended
• Button Count: 4
• Button Functions: Lock / Unlock / Trunk Release / Panic
• Remote Start: No
• Key Type: Remote Flip Key
• Keyless Go / Proximity: No
• Keyway / Blade: HU100
• Integrated Flip Blade: Yes
• Battery: CR2032
• Manufacturer Type: Aftermarket
• Condition: New

Product Information

• Compatible Makes: Buick / Chevrolet / GMC
• Application Type: Remote / Immobilizer
• Integrated Flip Blade: Yes
• Keyway / Blade Profile: HU100
• Transponder: Philips ID46 GM EXT / 46E
• Power Source: Battery Powered
• Battery Size: CR2032
• Programming: Dealer / Locksmith Programming Required
• Remote Features: Keyless Entry, Power Lock, Trunk Release, Panic Mode
• Primary OEM Reference: 13504200
• Additional OEM / Service Cross-References: 13504205 / 13585811 / 5912555 / 5913396
• Strattec Cross-Reference: 5912543
• Ilco Cross-Reference: AX00010580 / AX00014460

Vehicle Compatibility

Buick

• Allure: 2010–2012
• Encore: 2014–2019
• LaCrosse: 2010–2016
• Regal: 2011–2017
• Verano: 2012–2017

Chevrolet

• Camaro: 2010–2019
• Cruze: 2011–2016
• Equinox: 2010–2019
• Impala: 2014–2019
• Malibu: 2014–2016
• Sonic: 2012–2017

GMC

• Terrain: 2010–2019

Important: FCC ID OHT01060512 exists in several GM button and OEM part-number configurations. Verify the original FCC ID, 315 MHz frequency, 4-button Lock / Unlock / Trunk / Panic configuration, HU100 blade and OEM part number before ordering, cutting, or programming.

Programming & Compatibility

This remote flip key requires programming to the vehicle's immobilizer and remote keyless-entry system before use.

Professional locksmith or dealer-compatible programming equipment may be required. For newer replacement remote keys, professional programming is recommended rather than assuming an onboard procedure is available.
