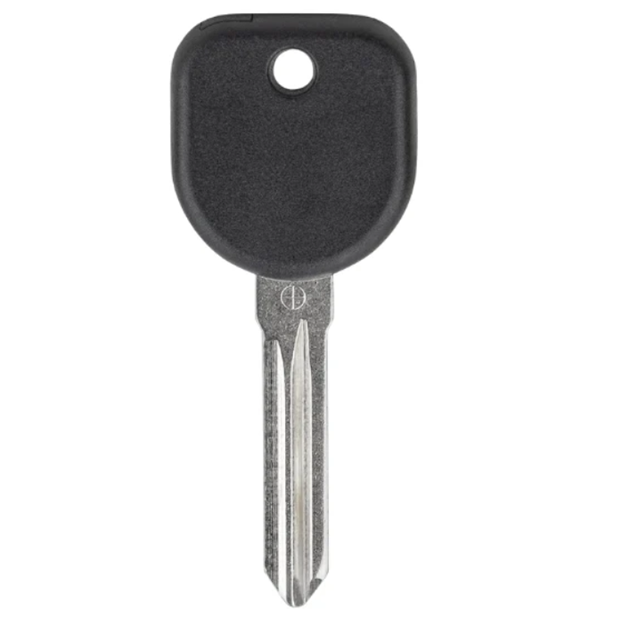

GM B111-PT Transponder Key – ID46 Philips Circle+ – B106-P Z Keyway – Aftermarket

GM B111-PT Transponder Key – Philips ID46 Circle+ – B106-P Z Keyway

Aftermarket transponder key designed for compatible GM-platform vehicles using the B111 / B111-PT key system and Philips ID46 Circle+ transponder.

This key features a B106 / B106-P (Z) keyway with a 10-cut blade and integrated Philips ID46 Circle+ transponder chip. It is intended for select Buick, Cadillac, Chevrolet, GMC, Hummer, Pontiac, Saturn, and Suzuki applications and requires both mechanical key cutting and vehicle-specific transponder programming before use.

Key Features

• Aftermarket automotive transponder key
• B111 / B111-PT key configuration
• B106 / B106-P keyway
• Z keyway
• Philips ID46 Circle+ transponder chip
• 10-cut blade
• G0000–G3631 code series
• Nickel-plated blade
• Integrated transponder chip
• Key cutting required
• Vehicle-specific transponder programming required
• No remote functions
• No battery required

Product Information

• Product Type: Transponder Key
• Manufacturer Type: Aftermarket
• Key Reference: B111 / B111-PT
• Keyway: B106 / B106-P (Z)
• Transponder Chip: Philips ID46 Circle+
• Cut Configuration: 10-Cut
• Code Series: G0000–G3631
• Blade Material: Nickel Plated
• Application: Automotive
• Compatible Makes: Buick, Cadillac, Chevrolet, GMC, Hummer, Pontiac, Saturn, Suzuki
• Key Cutting Required: Yes
• Transponder Programming Required: Yes
• Battery Required: No
• Remote Functions: No
• FCC ID: N/A

Vehicle Compatibility

Buick

• Enclave — 2007–2017
• Lucerne — 2006–2011

Cadillac

• CTS — 2008–2013
• DTS — 2006–2011
• Escalade — 2007–2014
• SRX — 2008–2009
• STS — 2004–2011

Chevrolet

• Avalanche — 2007–2013
• Cobalt — 2006–2010
• Equinox — 2007–2009
• Express — 2008–2014
• HHR — 2006–2011
• Impala — 2006–2013
• Impala Limited — 2014–2016
• Malibu — 2004–2012
• Monte Carlo — 2006–2007
• Silverado — 2007–2013
• Suburban — 2007–2014
• Tahoe — 2007–2014
• Traverse — 2009–2017

GMC

• Acadia — 2007–2015
• Savana — 2008–2014
• Sierra — 2007–2013
• Yukon — 2007–2014

Hummer

• H2 — 2008–2009

Pontiac

• G5 — 2007–2010
• G6 — 2005–2010
• Pursuit — 2006–2011
• Solstice — 2006–2010
• Torrent — 2007–2009

Saturn

• Aura — 2007–2010
• Outlook — 2007–2010
• Sky — 2007–2010

Suzuki

• XL-7 — 2007–2009

Important: Vehicle compatibility may vary by production date, trim level, ignition system, and immobilizer configuration. Verify that the vehicle uses the B111 / B106-P key profile and Philips ID46 Circle+ transponder system before cutting or programming.

Programming & Compatibility

This transponder key requires mechanical cutting and vehicle-specific immobilizer programming before use.

The B106 / B106-P mechanical profile may be found on additional GM-platform applications, but a matching blade profile alone does not confirm electronic compatibility. The vehicle must specifically use the appropriate Philips ID46 Circle+ transponder system.
