Ford 4-Button Remote Head Key – OUCD6000022 / CWTWB1U793 – 315 MHz – 4D63 80-Bit

Ford 4-Button Remote Head Key – OUCD6000022 / CWTWB1U793 – 315 MHz – 4D63 80-Bit

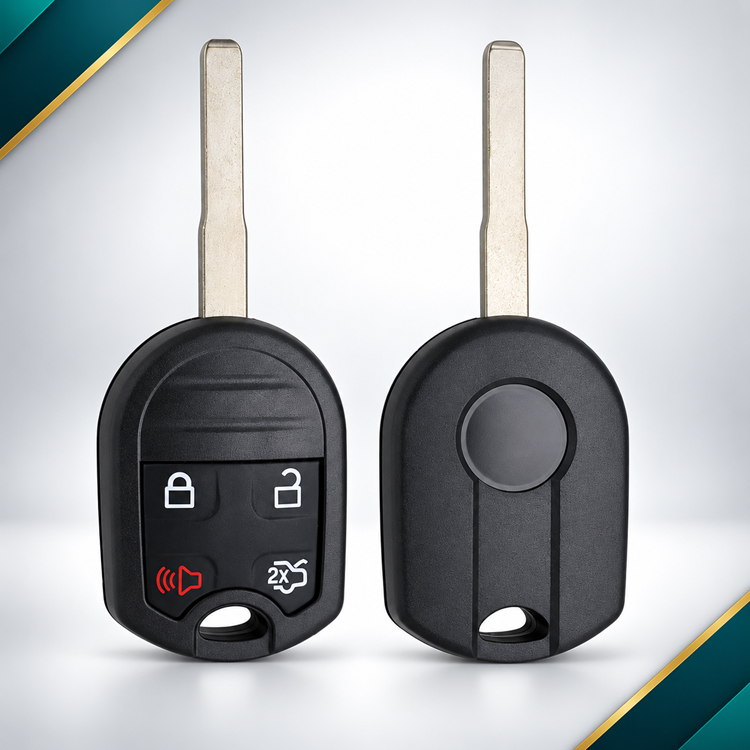

Aftermarket replacement remote head key for select Ford vehicles equipped with the OUCD6000022 / CWTWB1U793 remote and immobilizer system.

This 4-button remote head key operates at 315 MHz and features an integrated Texas 4D63 80-bit transponder. The remote provides Lock, Unlock, Trunk Release, and Panic functions while combining the vehicle's mechanical key, immobilizer transponder, and keyless-entry remote into a single unit.

The integrated high-security blade uses the HU101 / H94 profile. Always verify the original FCC ID, frequency, button configuration, transponder type, keyway, OEM part number, and vehicle application before cutting or programming.

Key Features

• FCC ID: OUCD6000022 / CWTWB1U793
• IC: 850K-D6000022 / 1788A-FWB1U793
• Frequency: 315 MHz
• Transponder Chip: Texas 4D63 80-Bit
• Button Count: 4
• Button Functions: Lock / Unlock / Trunk Release / Panic
• Key Type: Remote Head Key
• Keyway / Blade: HU101 / H94
• Blade Type: High Security
• Chip Configuration: Integrated
• Battery: CR2032
• Manufacturer Type: Aftermarket
• Condition: New

Product Information

• Compatible Make: Ford
• Application Type: Remote / Immobilizer
• Integrated Blade: Yes
• Keyway / Blade Profile: HU101 / H94
• Transponder: Texas 4D63 80-Bit
• Power Source: Battery Powered
• Battery Size: CR2032
• Programming: Transponder and Remote Programming Required
• Remote Features: Keyless Entry, Power Lock, Trunk Release, Panic Mode
• OEM / Service Cross-Reference: 164-R8046 / 164-R8126 / 5921709 / 5922964

Vehicle Compatibility

Ford

• C-Max: 2013–2019
• Escape: 2013–2019
• F-350: 2011–2013
• Fiesta: 2015–2018
• Focus: 2012–2019
• Transit: 2013–2014
• Transit Connect: 2014–2019

Important: Vehicle compatibility may vary by production date, trim, original key system and FCC ID. Verify OUCD6000022 / CWTWB1U793, 315 MHz frequency, 4D63 80-bit transponder, HU101/H94 blade profile and original button configuration before ordering, cutting or programming.

Programming & Compatibility

The transponder and remote functions must be programmed to the vehicle before use.

On supported Ford applications, onboard programming may be possible when two already-programmed working keys are available. The remote portion must be programmed separately from the transponder portion. If the vehicle does not meet the onboard-programming requirements, professional locksmith or dealer programming equipment will be required.
