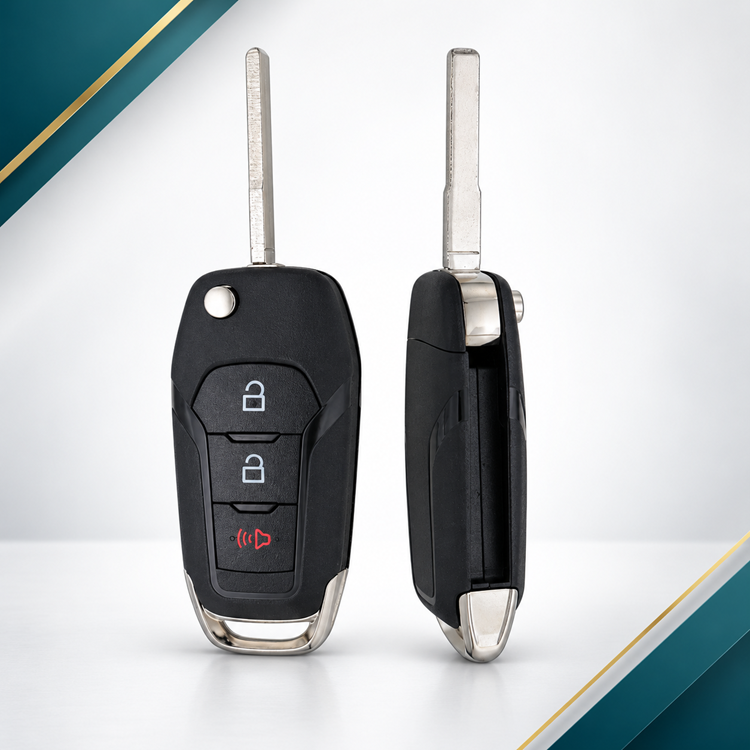

Ford 3-Button Remote Flip Key – N5F-A08TAA – 315 MHz – ID49 HITAG Pro

Ford 3-Button Remote Flip Key – N5F-A08TAA – 315 MHz – ID49 HITAG Pro

Aftermarket replacement remote flip key for select Ford vehicle applications equipped with the N5F-A08TAA remote key and immobilizer system.

This 3-button flip key operates at 315 MHz and features an integrated ID49 / HITAG Pro 128-bit transponder system. The remote provides Lock, Unlock, and Panic functions and includes an integrated HU101 high-security flip blade.

Designed for professional automotive locksmith use. Programming and key cutting are required before use. Always verify the FCC ID, frequency, transponder system, keyway, part number, and vehicle application before cutting or programming.

Key Features

• FCC ID: N5F-A08TAA
• IC: 3248-A08TAA
• Frequency: 315 MHz
• Transponder Chip: ID49 / HITAG Pro 128-bit
• Button Count: 3
• Button Functions: Lock / Unlock / Panic
• Key Type: Remote Flip Key
• Keyway: HU101
• Blade Included: Yes
• Chip Configuration: Integrated
• Manufacturer Type: Aftermarket
• Condition: New

Product Information

• Compatible Make: Ford
• Application Type: Remote / Immobilizer
• Keyway / Blade: HU101
• Power Source: Battery Powered
• Battery Size: CR2032
• Programming: Vehicle programming required
• Remote Features: Keyless Entry, Power Lock, Panic Mode
• OEM / Service Cross-Reference: 164-R8130
• Strattec Cross-Reference: 5923667
• Professional programming may be required depending on the vehicle and number of existing programmed keys

Vehicle Compatibility

Ford

• F-150: 2015–2022
• F-250 Super Duty: 2017–2022
• F-350 Super Duty: 2017–2022
• F-450: 2018–2022
• F-550: 2018–2022
• F-600: 2021–2022
• Explorer: 2016–2022
• Expedition: 2018–2022
• EcoSport: 2018–2022
• Escape: 2020–2022
• Ranger: 2019–2022
• Bronco: 2021–2022
• Maverick: 2022

Important: Vehicle compatibility may vary by production date, trim level, ignition configuration, and original key system. Verify FCC ID N5F-A08TAA, 315 MHz frequency, HU101 blade profile, button configuration, and original part number before ordering, cutting, or programming.

Programming & Compatibility

This remote flip key must be programmed to the vehicle's immobilizer system before use.

Certain Ford applications may support adding a new key through an onboard procedure when two previously programmed keys are available. When those conditions are not met, professional locksmith or dealer programming equipment may be required.
