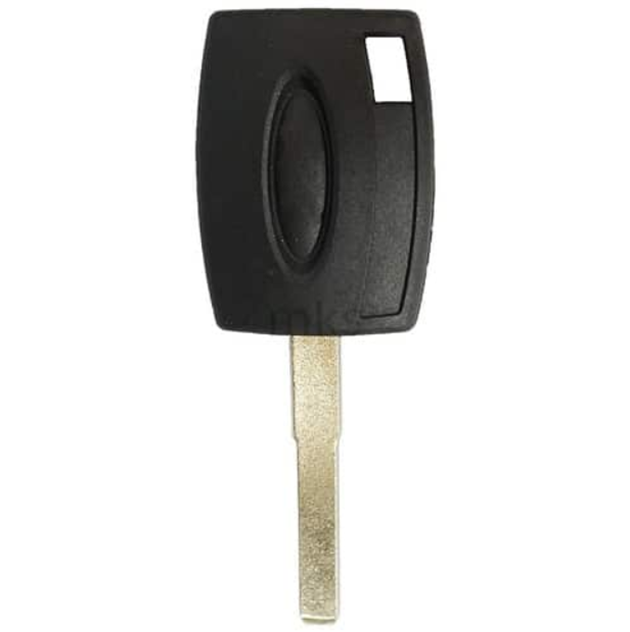

Ford H94-PT / HU101 Transponder Key – Aftermarket 4D63 80-Bit Chip

Ford H94-PT / HU101 Transponder Key – Aftermarket 4D63 80-Bit Chip

Aftermarket side-mill transponder key designed for compatible Ford vehicles using the H94-PT key family, HU101 blade profile and Texas ID 4D63 80-bit transponder system.

This version is equipped with an aftermarket 4D63 80-bit transponder chip and features a 10-cut HU101 side-mill blade. The key requires mechanical cutting and vehicle-specific transponder programming before use.

Key Features

• Aftermarket automotive transponder key
• Aftermarket Texas ID 4D63 80-bit transponder chip
• H94-PT key family
• HU101 keyway / blade profile
• 10-cut side-mill blade
• Integrated transponder chip
• Designed for compatible Ford immobilizer applications
• Key cutting required
• Vehicle-specific transponder programming required
• No remote functions
• No battery required

Product Information

• Product Type: Transponder Key
• Manufacturer Type: Aftermarket
• Transponder Chip Type: Aftermarket
• Transponder Chip: Texas ID 4D63
• Chip Configuration: 80-Bit
• Key Family: H94-PT
• Keyway: HU101
• Blade Type: Side Mill
• Cut Configuration: 10-Cut
• Application: Automotive
• Compatible Make: Ford
• ILCO: HU101T17 / H94PT
• Reference P/N: 164-R8062
• Strattec Reference: 5915237 / 5921709
• Key Cutting Required: Yes
• Transponder Programming Required: Yes
• Battery Required: No
• Remote Functions: No
• FCC ID: N/A

Vehicle Compatibility

Ford

• C-Max — 2013–2017
• Escape — 2013–2019
• Fiesta — 2011–2018
• Focus — 2012–2018
• Transit — 2015–2020*
• Transit Connect — 2014–2020*

* Important for 2019–2020 applications: some later Ford vehicles may use a different transponder system. 2019–2020 Transit applications in particular can require either an H94 or a newer H128 configuration. Always verify the original key and required transponder system before ordering.

Important: Vehicle compatibility may vary by production date, ignition configuration and immobilizer/transponder system. Verify the HU101 blade profile and required 4D63 80-bit system before cutting or programming.

Programming & Compatibility

This H94-PT transponder key must be mechanically cut and programmed to the vehicle before use.

Compatibility should be verified using the vehicle year, make, model, original HU101 blade profile and required transponder system. A matching HU101 blade alone does not guarantee electronic compatibility, particularly on later Ford applications that may use a newer transponder generation.
