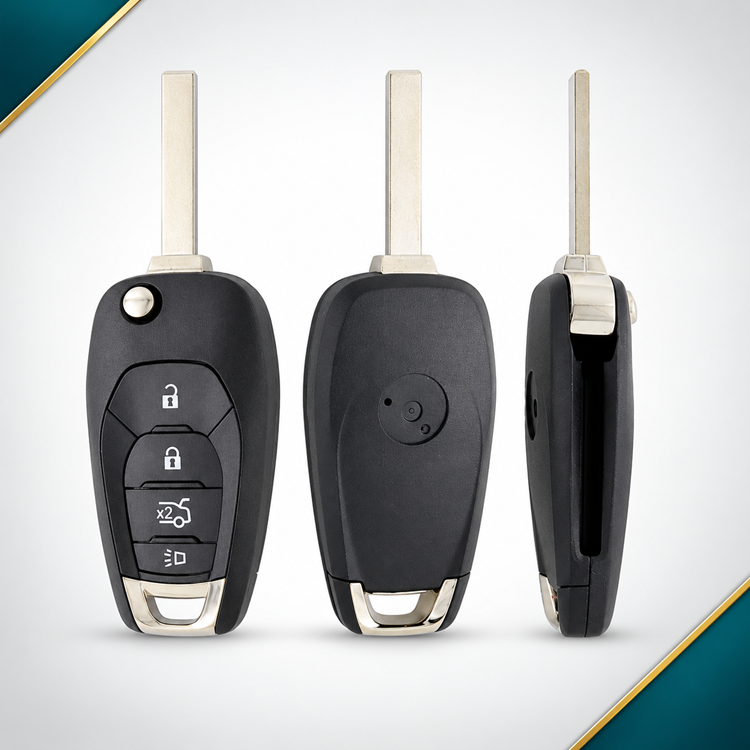

Chevrolet Cruze 4-Button Remote Flip Key – LXP-T004 – 433 MHz – ID46

Chevrolet Cruze 4-Button Remote Flip Key – LXP-T004 – 433 MHz – ID46

Aftermarket replacement remote flip key for select 2016–2019 Chevrolet Cruze vehicles equipped with the LXP-T004 433 MHz remote and immobilizer system.

This 4-button flip key operates at 433 MHz and features an integrated Philips ID46 GM EXT / PCF7941E HITAG2 transponder. The remote provides Lock, Unlock, Trunk Release, and Panic functions while combining the mechanical ignition key, immobilizer transponder, and remote keyless-entry functions into a single flip-key design.

The integrated blade uses the HU100 high-security profile. This key is intended for compatible XL8 / 433 MHz applications and should not be confused with visually similar Cruze keys operating on a different frequency or system configuration.

Always verify the original FCC ID, frequency, RPO/system configuration, transponder type, blade profile, button layout, and OEM part number before ordering, cutting, or programming.

Key Features

• FCC ID: LXP-T004
• IC: 2298A-T004
• Frequency: 433 MHz
• Transponder Chip: Philips ID46 GM EXT
• Chip IC: PCF7941E
• Transponder Technology: HITAG2
• Button Count: 4
• Button Functions: Lock / Unlock / Trunk Release / Panic
• Key Type: Remote Flip Key
• Keyless Go / Proximity: No
• System: XL8
• Keyway / Blade: HU100
• Integrated Flip Blade: Yes
• Battery: CR2032
• Manufacturer Type: Aftermarket
• Condition: New

Product Information

• Compatible Make: Chevrolet
• Application Type: Remote / Immobilizer
• Integrated Flip Blade: Yes
• Keyway / Blade Profile: HU100
• Transponder: Philips ID46 GM EXT / PCF7941E HITAG2
• Power Source: Battery Powered
• Battery Size: CR2032
• System Configuration: XL8 / 433 MHz
• Programming: Dealer / Locksmith Programming Required
• Remote Features: Keyless Entry, Power Lock, Trunk Release, Panic Mode
• OEM / Service Cross-Reference: 13514135 / 13513842 / 13514111 / 5933402

Vehicle Compatibility

Chevrolet

• Cruze: 2016–2019 — XL8 / 433 MHz system

For 2016 Chevrolet Cruze, compatibility requires special attention. The vehicle must use the XL8 system and advises checking the SPID/RPO label for XL7 or XL8; vehicles that have undergone the applicable conversion may have the label updated. This LXP-T004 key is for the 433 MHz XL8 configuration, not the alternate Cruze system.

Important: This key is designed for the compatible XL8 / 433 MHz system. FCC ID LXP-T004 was also used in later GM applications with different OEM part numbers and button functions. Always verify the original FCC ID, OEM part number, frequency, button layout, HU100 blade, and vehicle system configuration before ordering, cutting, or programming.

Programming & Compatibility

This remote flip key requires programming to the vehicle's immobilizer and remote keyless-entry system before use.

The PCF7941E / ID46 transponder and remote functions must be correctly matched to the vehicle. Professional locksmith or dealer programming equipment may be required.

For 2016 Cruze applications, verify the vehicle's XL8 configuration before programming. A visually identical key operating on another frequency/system is not interchangeable with this 433 MHz version.
